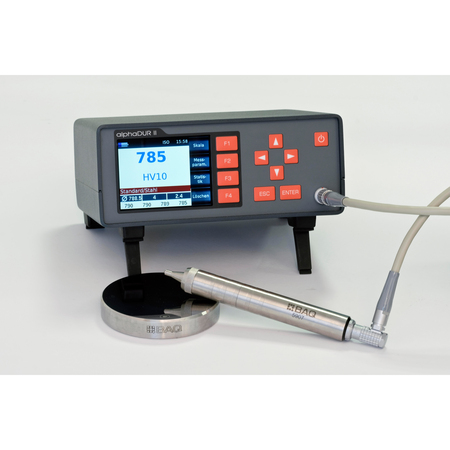

BAQ alphaDUR II UCI Hardness Tester
BAQ alphaDUR II UCI Hadrness Tester has proved its worth as a reliable and versatile hardness tester since many years. It can be employed from simple manual measurements to fully automated production testing.
The operation of the alphaDUR II is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by context-sensitive function keys.
Due to the UCI measuring method measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 0.3 (HV 0.3) and 10 kg (HV10) can be chosen depending on the application and the sample surface.
Specifications:
| Measuring method | UCI (Ultrasonic Contact Impedance) according to DIN 50159 and ASTM A 1038-05 |
| Test load | 3, 10, 20, 30, 49 or 98 N, depending on the UCI probe (HV0.3 - HV10) |
| Testing Materials: | Preferably metals, material calibrations can be saved in the device. Measurements on glass, ceramic and plastic are possible if comparison measurements for calibration are done. Minimum thickness for steel app. 5mm (depending on the sample geometry) |
| Hardness scales | Vickkers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA, HRD, HRE, HRF), Super Rockwell (HR45N), Knoop (HK), tensile strength (MPa) |
| Conversion according to EN ISO 18265 and ASTM E140 | |
| Uncertainty of measurement | <2% to the value of the hardness test block |
| Display | Colour LCD 320 x 240 pixels |
| Interface | USB-Host, USB-Device, RS232 |
| Data memory | 500,000 data records with date, time and GOOD/BAD rating |
| Data transfer: | Direct protocol printout with mini thermal printer |
| PC-Software | |
| Data transfer on USB flash device | |
| Statistics | Average value, minimum, maximum, standard deviation |
| Battery | Built-in NiMH battery, battery life approx. 7 h, rechargeable by power supply / battery charger 100 - 240 V AC |
| Language | Menu: English, German, Russian |
| Manual: English, German, French, Italian, Russian | |
| Dimensions | 198 x 160 x 78 mm |
| Weight | Device 1400 g, Probe 190 g |
| Minimum sample thickness | Approx. 5 mm (depends on the dimension and the shape of the sample) |
alphaDUR II Kit Includes:
- Basic UCI hardness tester with built-in battery
- Probe choice of (3N, 10N, 20N, 30N, 49N or 98N) with cable
- USB charging adapter
- Carrying case
- Manufacturer certificate
- USB flash drive with manuals (PDF)
