Dakota CMX Series Corrosion Thickness Gauges
Top of the range and easy to use, the Dakota CMX Series Corrosion Thickness Gauges provide inspectors with all the features necessary to measure the material and coating thickness at the same time.
Intelligent
User definable limits for pass/fail indication
Set limits for pass/fail indication on individual reading or for each batch with audible & visual warnings.
Powerful
Store each measurement for further analysis
Up to 4GB of readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster™ Software for further analysis and reporting.
Versatile
Able to measure coating and material thickness
The Dakota CMX Ultrasonic Thickness Gauges have the ability to measure coatings and material thickness simultaneously while maintaining the ability to locate pits, flaws and defects in the material.
Customisable
Choose & customise the reading display

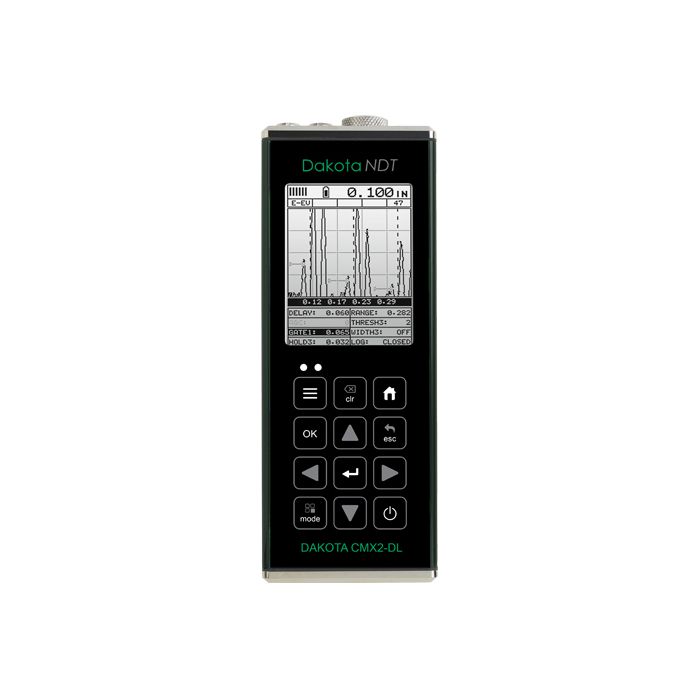

The Dakota CMX Series Thickness Gauge range has a choice of display modes allowing the user to select the most appropriate for their needs; Readings, B-Scan, B-Scan combined with readings, Scan bar & the A-Scan on the Dakota CMX2-DL Corrosion Thickness Gauge and Dakota CMX3-DL Corrosion Thickness Gauge.
Dakota CMX Corrosion Thickness Gauges

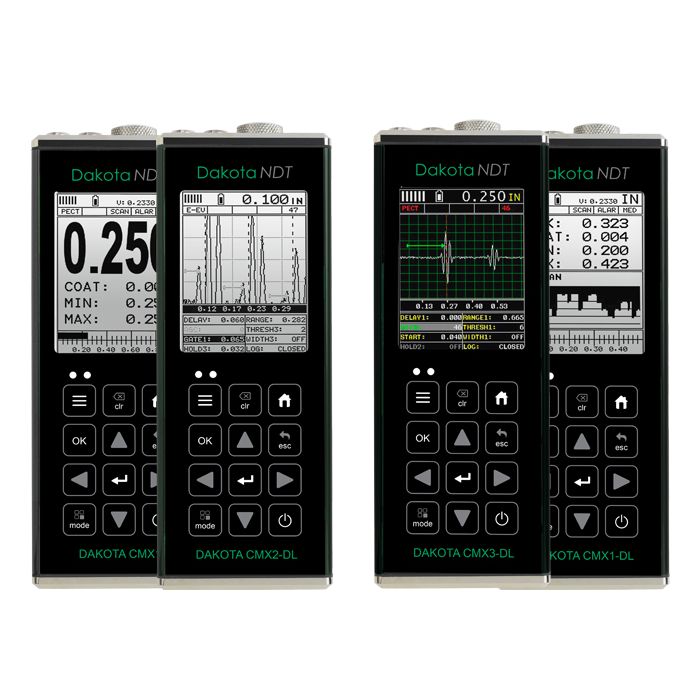

The Dakota CMX Series ultrasonic corrosion thickness gauge is available in four models - from an entry level Dakota CMX1 Ultrasonic Thickness Gauge to the top of the range Dakota CMX3-DL Ultrasonic Thickness Gauge.
- Range of display & measurement options: Pulse-Echo, Echo-Echo, Pulse-Echo Temp, Comp Mode (PETP), Coating Only Mode (CT), Pulse-Echo Coating Mode (PECT)
- Manual or automatic gain control (AGC) with adjustable 110dB range
- Gate control
- Threshold adjustment
- 64 User defined setups
- Multiple language display
- Multiple calibration and material selection options
- High speed scan mode: 250 readings per second (Dakota CMX1 Ultrasonic Thickness Gauge and Dakota CMX1-DL Ultrasonic Thickness Gauge), 50 readings per second (Dakota CMX2-DL Ultrasonic Thickness Gauge and Dakota CMX3-DL Ultrasonic Thickness Gauge)

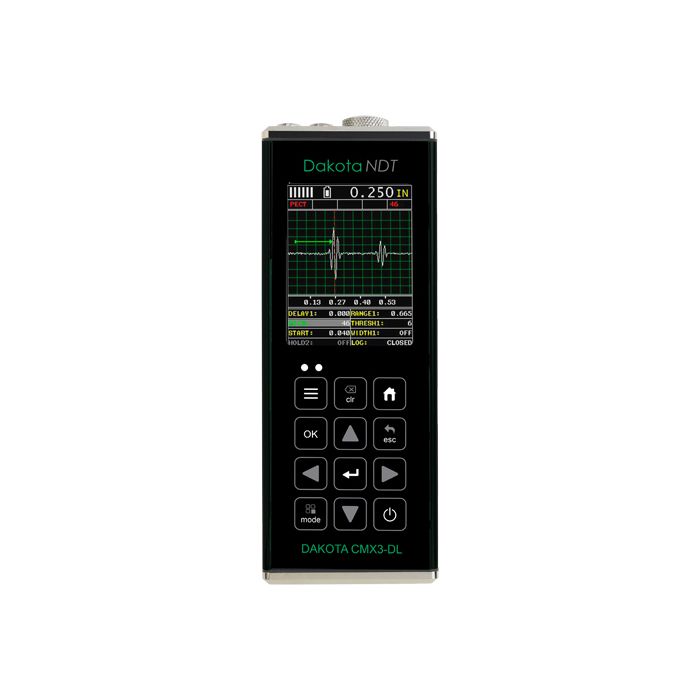

- A-Scan portrait & landscape views (Dakota CMX3-DL Ultrasonic Thickness Gauge only)
- Differential and minimal thickness alarm modes
- Data output and storage: 4GB internal memory
- Download to DakMaster™ data management software
Pulse - Echo Mode (PE):
The normal display mode, measures the total thickness from the base of the transducer probe to the material density boundary (typically the back wall). Ideal for pit and flaw detection.
Echo - Echo Mode (EE):
Also known as the ThruPaint™ Mode, EE ignores the coating thickness, displaying the material thickness from the top surface of the material to the material density boundary.
Pulse - Echo Temp Comp Mode (PETP):
Similar to the PE mode, PETP takes into account and compensates for the variations in measurement caused by temperature variations.
Echo - Echo Verify Mode (EEV):
The echo-echo verify mode measures by comparing the values between 3 reflections and is commonly used to eliminate errors from surface coatings and to make measurements in multiple layered materials.
Coating Only Mode (CT):
Displays the thickness of the coating applied to the material.
Pulse - Echo Coating Mode (PECT):
Displays both the material thickness (PE) and the coating thickness (CT) at the same time.
