High-Temp Dual-Linear Corrosion Arrays

The High-Temp Dual-Linear Corrosion Array is optimized for corrosion and erosion inspection at elevated temperatures. The transducer and its replaceable delay line is designed to withstand temperatures up to 200°C (392°F). This dual array features 32 transmit and 32 receive elements to provide larger beam coverage than conventional dual-element transducers. The transmit and receive element sets have an included angle to provide a pseudo-focusing effect in the inspected material.

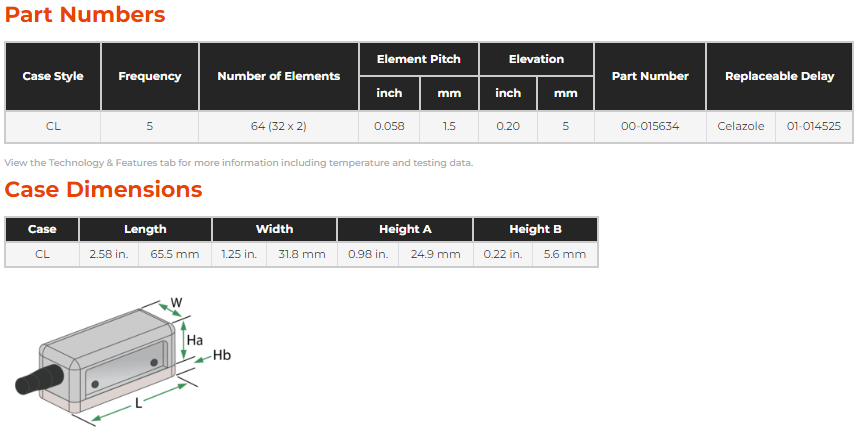

Temperature & Testing Data

This data is calculated with the transducer, delay, and asset all at 150°C (peek data) or 200°C (celazole data). During actual inspections, there will be a temperature gradient from the asset up to the transducer.

High-Temp Wedges – Celazole U-60

Up to 200°C (392°F)

	Celazole U-60
Temp (°C)	1st BW Gain (dB) Low / Low	Velocity (in./uS)	% Dif V from 25 °C	Gain at 80% FSH	% Dif BW from 25(°C)	Fc (MHz)	% Dif Fc from 25 (°C)
25	10	0.117	0.00	16	0.00	4.88	0.00
50	10	0.116	0.77	16	0.00	4.8	1.64
75	10	0.116	1.20	16.5	3.13	4.76	2.46
100	12.5	0.115	1.97	17.5	9.38	4.66	4.51
120	15	0.114	2.65	19.5	21.88	4.27	12.50
150	20	0.113	3.68	23.5	46.88	3.86	20.90
175	26	0.113	3.42	29.5	84.38	3.91	19.88
200	39	0.112	4.53	39	143.75	6.05	-23.98
