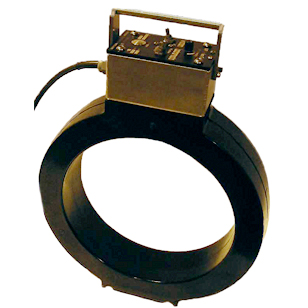

Western Instrument coils newest addition of Medium Duty Mag Particle Inspection Coils complements our existing Coil line-up of Magnetic Particle Inspection Equipment. WP Series Coils offer over 7000 Amp Turns of Half Wave DC Output and 4000 Amp Turns in AC. WP-Series Magnetic Particle Inspection Coils are set apart from other coils due to their Demag Option, which allows for Reversing and Decaying DC Magnetization. WP-Series are available in AC Output only, with the option to add a fixed DC Output making WP-Series very powerful AC/DC Magnetizing Coils. Further, adding the Variable DC Output Option allows operators to control the amount of field so parts do not become saturated. Lastly, crowning a WP-Series Magnetizing Coil with the Reversible DC Field Option, allows the operator to perform Reversing/Decaying DC Demagnetization.

WP-8, 8″ I.D. AC Coil, 4,250 Amp Turns
WP-8D, AC & DC Coil, 4150 Amp Turns AC|6,000 Amp Turns DC
WP-8DV, AC & DC Coil w/variable DC, 4,150 Amp Turn AC|0-6,000 Amp Turns DC
WP-8DVR, AC & DC Coil w/ variable and reversing DC, 4,150 Amp Turn AC|+/-0-6,000 Amp Turns DC

WP-10, 10″ I.D. AC Coil, 4,150 Amp Turns
WP-10D, AC & DC Coil, 4,150 Amp Turns AC|6,000 Amp Turns DC
WP-10DV, AC & DC Coil w/ variable DC, 4,150 Amp Turns AC|0-6,000 Amp Turns DC
WP-10DVR, AC & DC Coil w/variable and reversing DC, 4,150 Amp Turns AC|+/-0-6,000 Amp Turns DC

WP-12, 12″ I.D. AC Coil, 4,050 Amp Turns
WP-12D, AC & DC Coil, 4,050 Amp Turns AC|6,000 Amp Turns DC
WP-12DV, AC & DC Coil w/ variable DC, 4,050 Amp Turns AC|0-6,000 Amp Turns DC
WP-12DVR, AC & DC Coil w/variable and reversing DC, 4,050 Amp Turns AC|+/-0-6,000 Amp Turns DC

WP-14, 14″ I.D. AC Coil, 3,875 Amp Turns
WP-14D, AC & DC Coil, 3,875Amp Turns AC|6,000 Amp Turns DC
WP-14DV, AC & DC Coil w/ variable DC, 3,875 Amp Turns AC|0-6,000 Amp Turns DC
WP-14DVR, AC & DC Coil w/variable and reversing DC, 3,875 Amp Turns AC|+/-0-6,000 Amp Turns DC
